1964-1966 GMC Park Lamps

Hey My Front Park Lamps Won't Stay On!

Park lamp to Marker Lamp Conversion

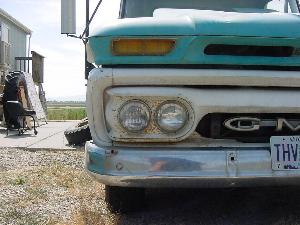

Do your front park lamps go out when you switch on the headlamps? If so then they are
working the way they were designed. There was a law passed that made it mandatory for
them to stay on after 1968, was that same law that required side maker lamps.

To do this mod you will need one Quick Connecter or Scotch Lock, some time,
a few tools & a good light, as you will be working under the dash.

Remover the headlight switch, Pull switch knob out & press on spring-loaded release
button on top of switch & pull knob and rod out. Use a wide blade screwdriver to remove
ferrule securing the switch to dash, then pull switch down. If you are working on a 1960 to
1963 truck, you are on the wrong page. On 1964 to 1966 trucks use the diagrams below.

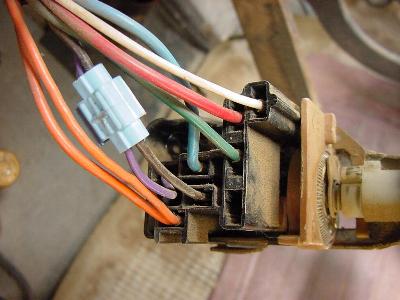

You need to connect the wire from post #7, Parking lights, to the wire on post #4,
Taillights, use the scotch lock for this. Now reinstall you light switch.

Your front parking lights are now front marker lights & will stay on with the headlights.

Your wiring should now look like this. It only took me about 10 minutes to do this mod.
